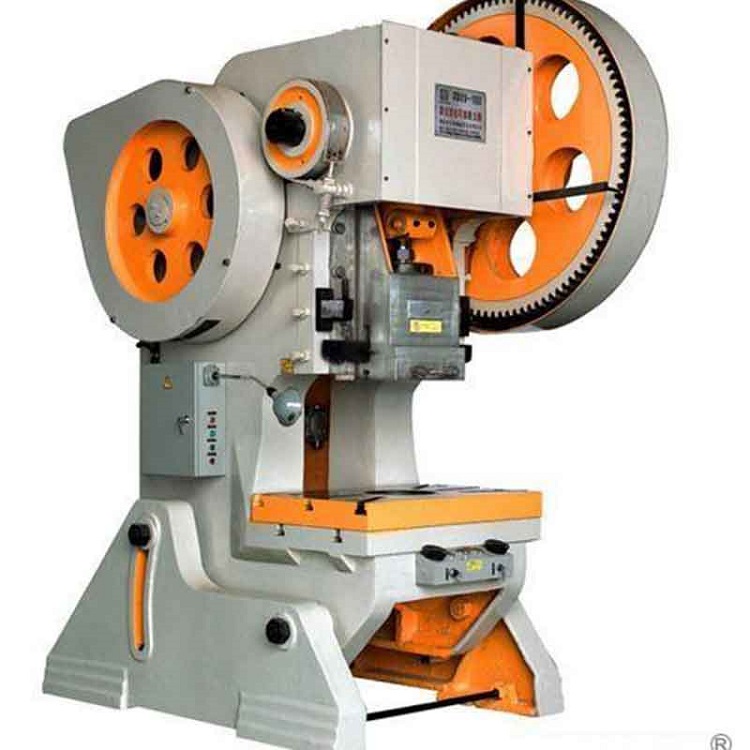

JB23 punch press is a suitable open type crank press featuring a left and right open type machine body (i.e. C-shaped machine body). Its steel plate welded body has high shock-absorbing performance. Its novel overall design gives the machine elegant appearance. Its throat has certain depth. The compact structure makes the use convenient and operation safe. The punch press is equipped with a turn-key rigid clutch, a cam band brake and a press-down type safety device. Its working table is open on three sides, so the mold loading and unloading and operation are convenient. The punch press is widely used for it provides good conditions for mechanization and automation. And as main equipment for plate punching production, the punch press can be used for punching holes, blanking, trimming, bending, shallow stretching and forming in national defense, aerospace, automobile, tractor, motor, electrical appliance, bearing, instruments, agricultural machine and tool, bicycle, sewing, mechanical appliance, daily hardware and coinage departments.

The machine of whole structure and characteristics :

1.C-Type Steel-welded frame, high rigidity and less deformation Compact,wide body frame eliminating vibration for improved idelife and machine.
2. Rigid construction guarantees exact die mating,Six-side long rectangle guides of the slide with high moving precision and high accuracy, extending the service life of the die.
3. Highly advanced, rigidly supported gears, operate in oil bath without any noise saves space, reduces, shaft deflection, increases gear life.
4.High accuracy, high efficiency, simple and convenient operation, good performance, favorable price and best service.

ciri-ciri
5. J23 series are general open-tilting power press with simple structure ,reliable performance and easy operation .J23 can adopt rigid turn-key clutch .
6.So, it is convenient for operation and maintenance .J23 can also adopt emergency stop service to make the slider block suddenly stop on the range of 0-135 degree,and the photoelectrical protector device is optional .
7.J23-100B and J23-125 are special among the J23 series .Their main body is cast in iron .The cranked axle is settled
vertically.Eccentric sleeve makes easy adjustment .And there is also pneumatic friction.Therefore ,J23-100B and J23-125 enable to work with small impact and sationarity and make slider block stop at any position .

Product Detail



  Main Motor                                                                        Workbench                               Rigidly supported gears

Using Siemens motor guarantees the           Six-side long rectangle guides    Highly advanced, rigidly supported

machine service lifeand reduce the noise     of the slide with high moving      gears,operate in oil bath without

when working Bosch Rexroth Oil Pump       precision and high accuracy,        any noise saves space,reduces,

12345647895566632233                       extending the service life of the die.   shaft deflection,increases gear life.

Product Display



Parameter

规格型号 Model
JB23-100T
JB23-80T
JB23-63T
JB23-40T
JB23-25T
JB23-16T
JB23-10T
公称力
Nominal Force(KN)
1000
800
630
400
250
160
100
滑块行程
Lejang slaid (mm)
130
115
110
100
70
60
50
滑块次数
SPM (min-1)
45
45
50
70
80
120
150
封闭高度
Die Height Adjustment ( mm)
400
385
380
350
280
245
160
最大封闭高度调节量
Max. Die Height (mm)
60
60
60
60
50
40
30
滑块中心至机身距离
Between Slide Center & Frame(mm)
280
260
250
220
185
160
120
工作台尺寸
Table size( mm)
前后 front and back
530
490
450
400
320
280
230
左右 left and right
830
760
700
650
540
455
370
工作台孔尺寸
Table hole size(mm)
190
170
170
140
130
130
100
立柱间距离
Distance between columns(mm)
365
310
310
245
200
215
180
横柄孔尺寸
Shank Hole
直径 Dia(mm)
60
60
60
40
38
35
30
深度 Dpth(mm)
80
80
80
80
60
60
50
工作台板厚度
Bolster Thickness (mm)
95
90
85
70
50
45
40
机身最大可倾度
Max. Inclined Angle (°)
20
20
20
20
20
20
20
电动机
Motor Power( kw)
7.5
7.5
5.5
3
2.2
2.2
1.5
外形尺寸
Outline Size
前后 mm
2000
1700
1700
1500
1200
1100
850
左右 mm
1300
1250
1200
1100
800
750
570
高mm
2800
2600
2450
2300
2000
1600
1530
总质量 Weight(Kg)
5500
4500
3500
2500
1100
700
350
